Introduction

Fares from different carriers/fare providers are the building blocks for a distributor to form products, product based offers and transport contracts. The fares can be provided by a carrier/fare provider using the OSDM online API or via the offline fare data. The distributor has the task to combine the fares from different providers into products according the the rules set in the fares.

By nature the fares are foreseen to be used in combination with other fares, However a fare from one provider could be used to create a product. This is mainly done with offline fares as for OSDM online the original products of the provider can be accessed. Converting a single online fare from only one provider without combining it is not recommended and might be prohibited by the provider.

Offline and Online Fares share some data objects, but the data context is different. Online Fares are always part of an offer for a specified trip and a specified list of passengers. In Offline Fares this context is missing and the Offline Fares must provide all data required to link them into such a context.

Relationships between Offers, OfferParts, Products and Fares

An offer spans the trip consisting of legs. An offerpart spans a leg or - in the case of through fares - multiple legs. An offerpart references zero or two products. Mostly, the relationship is one-to-one (zero in case of included seat reservation, whereas two products are only referenced in some rare TGV-TER scenarios).

A fare is not necessarily bound to legs but reflects the tariff worlds. A fare often starts or ends at country borders where no train station exist. This border points are thus called virtual border points which can be modelled by ConnectionPoints. Fares are combined following a fare combination model to an offer.

Relationships between Offers, OfferParts, Products and Fares

Note: This example assumes that the complete trip can be priced.

Fare as Building Block for Products

As fares are only building blocks to construct a product they do not include all data a product based admission includes.

Fares include data to support the construction process. These are not included in products like admissions.

Attributes of an Online Fare

The following figure shows the attributes of an online fare:

Attributes of An Online Fare

Crucial attributes of an Online Fare are:

  • Combination Models defining the allowed combinations with other fares
  • AfterSales Models defining the way after sales can be handled by the distributor
  • Rules on through ticketing to allow of deny through ticketing with fares of other providers
  • Connection Points for connecting routes at borders between tariff regimes. (Tariff regime borders are usually not part of a trip specification)

Offline Fares need to provide additional data to link them to the sales context (trips, passengers, language, …):

  • Availability for Sale (Sales Window)
  • Travel validity
  • Passenger Constraints to link fares to passengers
  • Multiple Languages

and do not include:

  • A product definition
  • A FulfillmentDocument as the fulfillment is constructed by the Distributor. However a fare might include fulfillment parts that need to be integrated in the fulfillment (e.g. additional bar code,..).
  • In some Business Models the Fare specifies a type of after sales rule only, not the exact after sales fee.

The RegionalValidity is included in Offline and Online Fares, but the usage of the data is different. The data included in the Offline Fares are used to link the fare to possible trips by the distributor. With online fares this is already done by the fare provider. The regional validity in the online fare is used to provide this information to the passenger and to the control staff via ticket bar codes.

Fares can be requested via the POST \offers indicating FARE_ADMISSION,FARE_RESERVATION or, FARE_ANCILLARY in offerSearchCriteria.requestedOfferParts.

The offer request might ask for product based admissions at the same time. Use cases for a mixed request might be that some part of the requested trip part is covered by products only. E.g. Fare Salzburg-Vienna + Product Based admission for Vienna city traffic.

In case of free transport a fare with zero price needs to be provided to allow the construction of products.

Passengers

An offer must always include fares for all passengers. In case the pricing can be split between passengers a fare per passenger should be created. Otherwise Fares for multiple passengers are used.

Fare Combination Rules

Fare Combination Rules are included in Offline and Online Fares. They govern the combination of fares from different providers.

Fare Combination Rules - Data Structures

The combination rules include:

  • business model (‘model’) that governs the combination. This mainly defines the was after sales conditions must be applied:
    • CLUSTERING_MODEL: The Distributor is allowed to apply his standard after sales rules for the flexibility cluster of the final product.
    • COMBINING_MODEL: The distributor must obey the after sales fees provided for the fare. In case of an Online Fare these are provided in the offer for customer information and during the online after sales in the message exchange.
  • providers where a fare combination is allowed
  • indication whether the fare is allowed to be converter into a product without combining it with fares from another fare provider
  • list of flexibility clusters of the final product that can contain this fare (allowedClusters)
  • allowed distributors (Offline Fares only)
  • list of fare providers with whom a through ticket is allowed (allowedCommonContracts). Note: Separate contracts can be contained on one fulfillment Document (Ticket) but the separation of contracts has to be indicated clearly on the ticket.

A Fare can have multiple combination constraints. One of them must match to construct a combination.

CLUSTERING and COMBINING rules are based on a classification of Products and Fares according to their flexibility:

CLUSTER_MODEL description
BUSINESS Refundable/Exchangeable after the departure or last day of validity
FULL_FLEX Refundable/Exchangeable before the departure or last day of validity
SEMI_FLEX Refundable/Exchangeable with fee depending on conditions of the distributor. Minimum validity applies
NON_FLEX Non refundable. Non exchangeable. Minimum validity applies
PROMO Used on a bilateral basis only. Non refundable. Non exchangeable. Minimum validity applies

A Product build from Fares must follow one of the cluster models. The Fare provides rules on the cluster models that are allowed to contain the fare. The rules usually ensure that a Fare can only be included in a product of the same cluster model or a cluster model that allows less flexibility in terms of after sales rules.

E.g. A FULL_FLEX fare might be allowed to be included in a SEMI_FLEX product, but not in a BUSINESS product.

Combining Regional Validity

The usage of the regional validity is different in Offline and in Online Fares. In Offline Fares they must provide the data to match the route with a trip from the distributors time table engine. In Online fares the matching is done by the fare provider, the distributor implementation is therefore much simpler.

The data model of the Route is identical in online and offline fares but the representation differs as the online representation avoids recursive data structures for security reasons.

Regional Constraint - Data Structures

Route example:

Fare Structure

Regional Validity in Online Fares

The route description of a product combined from fares is a concatenation of the route descriptions of the individual Fares with the addition of an indication of the tariff border usually using an abbreviation ‘(GR)’ od ‘(fr)’ and ‘*’ as separation signs. A Station name from the connection point of the two regional constraint might be added:

‘<route description fare 1>connectionPointStation name (fr)<route description of fare 2>’

The online fare does not necessarily need the structured route description from routeItem/routeItemList, the description can be build from the route summary. However the structured route enables more use cases e.g. automated control of bar codes, graphical displays of the route).

If structured route data are provided it is recommended to build the description based on the structured data.

The (fare) connection point(s) where the route can be connected to other fare routes is provided by the fare provider. It is recommended to check the matching of the connection points on distributor side to ensure that the routes from different providers are selected properly and match without gap.

Regional Validity in Offline Fares

For offline fares the connection point(s) and the structured route data are essential for aligning the route to trips, therefore the structured route information is mandatory. Combinations with other fares are only allowed when the connectionPoint(s) are matching.

Trip Alignment)

Data model:

Fare Structure

Object model:

Fare Structure

Reservation Fares

Reservations can follow the fare model. These are then requested as FARE_RESERVATION and indicated with distributionMode FARE_MODE. The differences to Product based reservations are marginal (with OSDM v.4.0 the reservation object will be used in both cases), the fulfillment of a reservation fare does not include a fulfillment document as the reservation will be integrated in the documents constructed by the distributor. The fare reservation will not include or link to a reservation fee as the fee is added by the distributor according to his general reservation fee rules.

As the difference to normal reservations is almost neglectable and with version 4 there will be only one reservation object. With OSDM v.3 the fare object with reservation data is available but deprecated. The general reservation should already with OSDM v.3 be used as fare reservation indicating the distributionMode FARE_MODE in the reservation.

Reservations obtained by the H2O converter of Hitrail are by definition fare reservations as the Hermes Protokoll only implements the fare model.

Creating Fulfillments

The distributor constructs the fulfillment for the product offer. The booking of the fare returns a fulfillmentId for the fares, but usually the content of the fulfillment will be empty. The restrictions on fulfillments provided in fulfillmentConstraint must be obeyed.

In special cases additional fulfillment parts can be provided by the fare provider (e.g. proprietary bar codes) based on bilateral agreements.

The fare provides a list of TCOs involved in the ticket control (involvedTCOs) that should be informed by the distributor in case a ticket control exchange is in place.

The fare provides additional information on age restrictions (passengerConstraints) to be included in the barcode.

Combining After Sales Rules

Clustering Model

In the clustering model the distributor applies its own after sales conditions depending of the cluster of the product.

Combination Model

The fare provides the exact after sales fees. The product adds the after sales fees of all included fares. This results in an after sales fee that increases whenever one of its fares after sales fees changes.

E.g.

  • Distributor product including fare 1 and fare 2
  • Fare 1 refund fee 10€ 10 days before traveling
  • Fare 2 refund fee 8€ 15 days before traveling
  • Product: 8€ refund fee 15 days before traveling, 18€ refund fee 10 days before traveling.

Handling After Sales

Clustering Model

In the clustering model the distributor applies its own after sales conditions depending of the cluster of the product. Although the distributor calculates the refund fee the refund has to be made via the OSDM API online.

The refund fees or exchange fees can follow two accounting models. In one model the fee belongs to the client (distributor), in the other model the fee belongs to the provider (fare provider / carrier). This is indicated in the AfterSalesConditionsLink of the Fare (isProviderFee: true). If the fee belongs to the provider the client will indicate the fee amount in the refund / exchange request in RefundSpecification.refundFee. The provider will then use this amount as refund fee and add the VAT split. The accounting flow follows the usual accounting of provider fees, the provider debits the fee to the consumer.

The accounting model will also be indicated in the resulting fee object created by the provider.

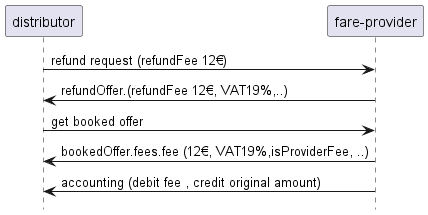

Clustering Model with Provider Fee Flow

Provider Fee Flow

Combination Model

The fare provides the after sales fees. The product adds the after sales fees of all included fares. This results in an after sales fee that increases whenever one of the fare after sales fees changes.

The Fee is subject to VAT according to the fare provider.

Detailed view at the Attributes of an Online Fare

The fare contains all information so that a retailer can calculate correct prizes, render a valid fulfillment and account correctly.

The following sections describe which fare attributes are used at which step:

Offer Creation Step

Relevant fare attributes for the offer creation step are:

  • price

  • regionalConstraint

    Examples: a list of stations, a list of zones or a list of train link,…

    A retailer needs to guarantee that the whole trip is covered by fares.

  • serviceConstraint

    Examples: IC, TGV, BEX, …

    A retailer can create offers only if the trip/leg is run by the service.

  • carrierConstraint

    Examples: Thalys, Eurostar, …

    A retailer can create offers only if the trip/leg is run by the carrier.

  • regulatoryConditions

    Examples: CIV, MD or EU-PER

    The regulatory conditions need to be indicated in the offer to inform the customer.

  • serviceClass

    Examples: HIGH, BEST, STANDARD or BASIC

    A retailer needs to consider serviceClass depending on the FareCombinationModel applied.

    The service class needs to be indicated in the offer to inform the customer.

  • travelClass

    Examples: FIRST or SECOND

    The comfort class needs to be indicated in the offer to inform the customer.

  • accommodationDetails

    Example: SEAT, COUCHETTE, BERTH or VEHICLE

    If the train is a night train or car carriage the accommodation details need to be reflected in the offer.

  • afterSalesCondition

    Example: Non-refundable after departure.

    A retailer needs to consider afterSalesCondition depending on the FareCombinationModelapplied.

    The refund/exchange conditions need to be indicated in the offer to inform the customer.

  • combinationConstraint

    Examples: SEPARATE_CONTRACTS model, SEPARATE_TICKETS model, CLUSTERING model or COMBINATION model

    A retailer can only combine fares respecting the combination models.

  • fulfillmentConstraint

    Examples: SIP, SID or SIS

    A retailer can only create offers which respect the constraints concerning the ticket control. If fulfillmentConstraint are mixed, then all constraints need to be served.

  • reductionConstraint

    Example: 1085_GA where 1085 denotes SBB, 1080_Bahncard50, where 1080 denotes DB, …

    A retailer can create offers only if the passenger(s) own(s) the reduction(s).

  • travelValidityConstraint

    Example: Valid 24h after departure

    The travel validity constraint needs to be communicated in the offer to inform the customer.

  • placeSelection

    Example: Selected places in a graphical seat map, reference place for adjacent reservation or place preferences

    A retailer most respect the selected places. The other types are optional to be respected by the retailer.

  • coveredSection

    Example: Start and end location

    A retailer has to create an offer that covers the whole trip from start location to end location.

Booking Step

Relevant fare attributes for the booking process step are:

  • price

  • reservationDetails

    Example: Wagon 19, Seat 44

    The reservation details need to be communicated at the pre-booking step to the customer.

  • legacyAccountingIdentifier

    The legacy accounting identifier information is used to write a correct 301 record.

Fulfillment Step

Relevant fare attributes for the fulfillment step are:

  • price

    The price needs to be communicated to the passenger(s), e.g. printed on the ticket.

    Additionally, it needs to be encoded in the security element(s).

  • regionalConstraint

    The regional constraint need to be communicated to the passenger(s), e.g. printed on the ticket.

    Additionally, it needs to be encoded in the security element(s).

  • regulatoryConditions

    The regulatory conditions need to be communicated to the passengers(s), e.g. printed on the ticket.

  • reservationsDetails

    The reservation details need to be communicated to the passengers(s), e.g. printed on the ticket.

    Additionally, it needs to be encoded in the security element(s) in case of mandatory reservations.

  • serviceClass

    The service class need to be communicated to the passengers(s), e.g. printed on the ticket.

    Additionally, it needs to be encoded in the security element(s).

  • travelValidityConstraint

    The date are needed to create valid barcode and control data.

    Additionally, it needs to be encoded in the security element(s).

  • passengerConstraint

    Example: Age between 6 and 16 years

    The passenger constraint need to be communicated to the passengers(s), e.g. printed on the ticket.

Refund Offer Creation Step

Relevant fare attributes for the creation of a refund offer are:

  • price

  • afterSaleConditions

    A retailer can create offers only if the after sale condition support its creation.

Exchange Offer Creation Step

Relevant fare attributes for the creation of a refund offer are the afterSaleConditions as well as all the attributes for offer creation.
