Graphical Place Reservation

Table of contents

Introduction

OSDM offers a standardized API for graphical place reservation. The API consists of a resource to get the availabilities and a resource to get the logical coach deck layout.

While the availability is called after a offer request dynamically, the coach deck layout data should be imported periodically as a master data import.

Fare providers must ensure that coach deck layouts and displayed elements are presented to partners as they appear in the provider’s own sales channels.

Coach deck layouts must represent an entire coach deck, not just a subset (e.g., return all seats, not only those in one compartment).

Getting Availabilities

There are two flows to get place availabilities. Either you pass in a offer id, for which you would like to get availabilities or you pass in a existing booking id.

The availability response is structured as follows: a vehicle consists of coaches which can have multiple decks. The decks consist of different compartment types. The type of compartment is defined by service class, accommodation type and accommodation sub type. For example compartment can be a second class family compartment. For each deck layouts an id references to the logical deck layout.

Compartments consists of places. Places can be seats, couchettes or berth. For each place a status indicates whether it’s free, allocated or restricted. The reservation reference allows to link the place to the correct reservation part.

Optionally it is possible for the reservation system to preselect places or compartments.

Getting Deck Layouts

The deck layout response is a logical description of a coach deck. A coach deck layout is a grid of a given dimension (x, y). All entities describing a coach deck are placed on this grid. The entities are either graphic elements or service icons. A graphical element is e.g. a seat, a staircase, or a toilet . A service icon is e.g. a first class icon indicating a first class service. See graphic items for a list of all graphic items.

Both graphical elements as well as service icons are positioned on the grid according to their defined rectangle which consists of a position (x, y, z) and a size (width, height). A graphical element can also be rotated using a rotation angle. This e.g. allows to use only one graphical element of a seat and to arrange them around a table.

Per convention the grid layout out is in horizontal presentation of a vehicle driving from right to left. The (0, 0) position is at the top left corner of the grid.

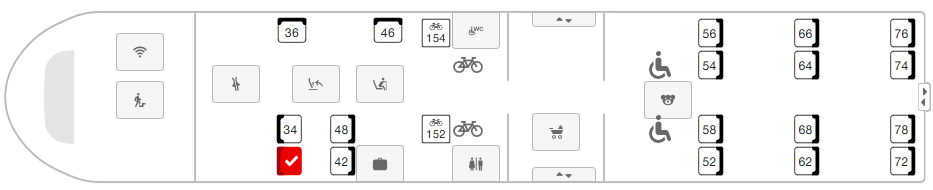

Example of a coach deck layout

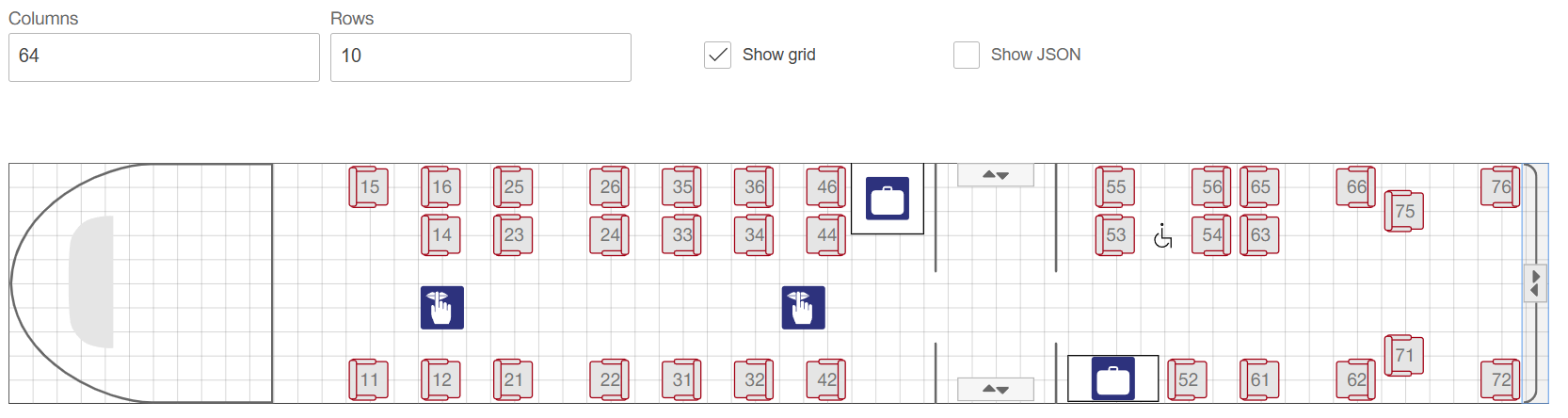

Next is an example with orientation values of graphical elements and seats shown. Zero degree denotes to the right direction, 90 degree to the bottom direction, 180 degree to the left direction and 270 degree to the top direction.

Additionally, some of the graphical elements and service icons are denoted: (1) driver area, (2) silence icon, (3) compartment passage, (4) entry/exit, (5) luggage area and (6) coach passage.

Example of a coach deck layout with explanations

Code List

Coach Deck layout collection

The following collection is used to build and visualize coach deck layouts. The list represents the lowest common denominator of graphic elements that should be understood by all stakeholders. We distinguish between

  • Graphical Elements (API Element graphicElements): graphical elements can always be rotated/can have different directions when putting them on the grid.
  • Service Icons (API Element serviceIcons): service icons don’t need a rotation degree because of the form of the icon. They don’t need an orientation when putting it on the grid.

Note: “Icon code” and “Mounting Used” are supported until version 3.6 included. Starting from version 3.7 and 4.0, the human‑readable “Element Code” must be used, and “Mounting Used” is deprecated.

Icon Description Element Code Orientation (in degrees) API Element Instruction for use
Seat looking to the right SEAT 0 graphicElements
Seat looking to the left SEAT 180 graphicElements
Seat looking up SEAT 270 graphicElements
Seat looking down SEAT 90 graphicElements
Berth looking to the right BERTH 0 graphicElements
Berth looking to the left BERTH 180 graphicElements
Berth looking down BERTH 90 graphicElements
Berth looking up BERTH 270 graphicElements
Couchette looking to the right COUCHETTE 0 graphicElements
Couchette looking to the left COUCHETTE 180 graphicElements
Table looking down TABLE 90 graphicElements
Table looking up TABLE 270 graphicElements
Big table looking down BIG_TABLE 90 graphicElements
Big table looking up BIG_TABLE 270 graphicElements
Wall with angle to left, height covers three places - looking up WALL_LEFT_3 270 graphicElements
Wall with angle to right, height covers three places - looking up WALL_RIGHT_3 270 graphicElements
Wall with angle to left, height covers three places - looking down WALL_LEFT_3 90 graphicElements
Wall with angle to right, height covers three places - looking down WALL_RIGHT_3 90 graphicElements
Small wall with angle to left, height covers two places - looking down WALL_LEFT_2 270 graphicElements
Small wall with angle to right, height covers two places - looking up WALL_RIGHT_2 270 graphicElements
Small wall with angle to left, height covers two places - looking down WALL_LEFT_2 90 graphicElements
Small wall with angle to right, height covers two places - looking down WALL_RIGHT_2 90 graphicElements
Small wall with angle to left, height covers one place - looking down WALL_LEFT_1 270 graphicElements
Small wall with angle to right, height covers one place - looking up WALL_RIGHT_1 270 graphicElements
Small wall with angle to left, height covers one place - looking down WALL_LEFT_1 90 graphicElements
Small wall with angle to right, height covers one place - looking down WALL_RIGHT_1 90 graphicElements
Wall between two compartments, height covers three places - looking up T_WALL_COMPARTMENTS_3 270 graphicElements
Wall between two compartments, height covers three places T_WALL_COMPARTMENTS_3 90 graphicElements
Small wall between 2 compartments, height covers two places - looking up T_WALL_COMPARTMENTS_2 270 graphicElements
Small wall between 2 compartments, height covers two places - looking down T_WALL_COMPARTMENTS_2 90 graphicElements
Wall, height covers one place WALL_1 90 graphicElements Wall elements should always be used with 90 degrees.
Wall, height covers two places WALL_2 90 graphicElements Wall elements should always be used with 90 degrees.
Wall, height covers three places WALL_3 90 graphicElements Wall elements should always be used with 90 degrees.
Wall, height covers five places WALL_5 90 graphicElements Wall elements should always be used with 90 degrees.
Arrow indicating upper level ARROW_UPPER_LEVEL_LEFT 90 graphicElements
Arrow indicating lower level tbd ARROW_LOWER_LEVEL_LEFT 90 graphicElements
Arrow indicating upper level tbd ARROW_UPPER_LEVEL_RIGHT 90 graphicElements
Arrow indicating lower level tbd ARROW_LOWER_LEVEL_RIGHT 90 graphicElements
Small Window WINDOW_1 0 graphicElements Windows should always be used with 0 degrees.
Medium window WINDOW_2 0 graphicElements Windows should always be used with 0 degrees.
Big window WINDOW_3 0 graphicElements Windows should always be used with 0 degrees.
Door with left opening (traditional) DOOR_OPENING_LEFT 180 graphicElements
Door with left opening (traditional) DOOR_OPENING_LEFT 90 graphicElements
Door with left opening (traditional) DOOR_OPENING_LEFT 0 graphicElements
Door with left opening (traditional) DOOR_OPENING_LEFT 270 graphicElements
Door with right opening (traditional) DOOR_OPENING_RIGHT 180 graphicElements
Door with right opening (traditional) DOOR_OPENING_RIGHT 90 graphicElements
Door with right opening (traditional) DOOR_OPENING_RIGHT 0 graphicElements
Door with right opening (traditional) DOOR_OPENING_RIGHT 270 graphicElements
Door (sliding) SLIDING_DOOR 180 graphicElements
Door (sliding) SLIDING_DOOR 90 graphicElements
Entry/Exit ENTRY_EXIT 90 graphicElements
Entry/Exit ENTRY_EXIT 270 graphicElements
Driver Area looking to the left DRIVER_AREA 180 graphicElements
Driver Area looking to the right DRIVER_AREA 0 graphicElements
Driver Area Tram looking to the left TRAIN_DRIVER_AREA 180 graphicElements
Driver Area Tram looking to the right TRAIN_DRIVER_AREA 0 graphicElements
Driver Area Bus looking to the left BUS_DRIVER_AREA 180 graphicElements
Driver Area Bus looking to the right BUS_DRIVER_AREA 0 graphicElements
Coach passage looking to the left COACH_PASSAGE 180 graphicElements
Coach passage looking to the right COACH_PASSAGE 0 graphicElements
Coach wall - no passage looking to the left COACH_WALL_NO_PASSAGE 180 graphicElements
Coach wall - no passage looking to the right COACH_WALL_NO_PASSAGE 0 graphicElements
Wheelchair space WHEELCHAIR_SPACE - serviceIcon
2nd class area SECOND_CLASS_AREA - serviceIcon
1st class area FIRST_CLASS_AREA - serviceIcon
Bar area BAR_AREA - serviceIcon
Mobile phone area MOBILE_PHONE_AREA - serviceIcon
Mobile phone forbidden area MOBILE_PHONE_FORBIDDEN_AREA - serviceIcon
PRM area PRM_AREA - serviceIcon
Family area FAMILY_AREA - serviceIcon
Restaurant area RESTAURANT_AREA - serviceIcon
Bicycle area BICYCLE_AREA - serviceIcon
Luggage area LUGGAGE_AREA - serviceIcon
Luggage locker LUGGAGE_LOCKER - serviceIcon
Conference compartment CONFERENCE - serviceIcon
Space for prams PRAM_AREA - serviceIcon
Wardrobe area WARDROBE_AREA - serviceIcon
Dust bin BIN - serviceIcon
Toilet TOILET_AREA - serviceIcon
Silence area SILENCE_AREA - serviceIcon
Children play area PLAYGROUND_AREA - serviceIcon
Non-smoker area NON_SMOKING_AREA - serviceIcon
Power socket POWER_SOCKET - serviceIcon
Priority Seat PRIORITY_SEAT - serviceIcon
WiFi area WIFI_AREA - serviceIcon
PRM toilet PRM_TOILET - serviceIcon
Air conditioning AIR_CONDITIONING - serviceIcon
USB port for charging USB_SOCKET - serviceIcon
Reclining seat RECLINABLE_SEAT - serviceIcon
Stairs upwards STAIR_UPWARDS_AREA - serviceIcon
Stairs downwards STAIR_DOWNWARDS_AREA - serviceIcon
Working compartment WORKING_AREA - serviceIcon
Cabin for passengers with allergies ANTI_ALLERGIC_AREA - serviceIcon
Meeting lounge for 7 people (Pendolino) MEETING_AREA_7 - serviceIcon
Meeting lounge for 12 people MEETING_AREA_12 - serviceIcon
Ski area SKI_AREA - serviceIcon
Conductor working compartment STAFF_AREA - serviceIcon
Mobile phone booth PHONE_BOOTH - serviceIcon
T-loop (audio induction loop) T_LOOP - serviceIcon
Pets area PETS_AREA - serviceIcon
Sleeping cabin with toilet and shower SLEEPING_CABIN_TOILET_SHOWER - serviceIcon
Interconnectible sleeping compartments CONNECTABLE_COMPARTMENTS - serviceIcon
Shower SHOWER - serviceIcon
Baby-care table BABY_CARE_TABLE - serviceIcon
Toddler Area TODDLER_AREA - serviceIcon
Push-button operated wheelchair ramp WHEELCHAIR_PUSH_BUTTON - serviceIcon
Sink/washbasin SINK - serviceIcon
Women’s compartment WOMEN_COMPARTMENT - serviceIcon
Multi Function Area MULTI_FUNCTION_AREA - serviceIcon

Custom elements

In addition to the list above, it is of course possible (based on bilateral agreements) to use partner-specific elements with their own codes (that have to be defined bilaterally).

Compartment passage

The passage between two compartments (“compartment passage”) should not be represented by one icon like this one:

but by two separate wall icons arranged one above the other with a gap between them (e.g. “WALL_1” and “WALL_2”).

External Service Icons

Note: External service icons are decommissioned starting with version 4.0 (included).

Icons concerning the entire coach description icon code Code of Service Icon
1st class coach 121 FIRST_CLASS_ICON
2nd class coach 122 SECOND_CLASS_ICON
mobile phone coach 127 MOBILE_PHONE_ICON
mobile phone forbidden in the entire coach 128 MOBILE_PHONE_FORBIDDEN_ICON
silence coach 126 SILENCE_ICON
bistro 123 BISTRO_ICON
restaurant car 124 RESTAURANT_ICON
bicycle coach 125 BICYCLE_ICON
bicycle coach (lower hock) - BICYCLE_LOW_ICON
bicycle coach (middle hock) - BICYCLE_MIDDLE_ICON
bicycle coach (upper hock) - BICYCLE_UPPER_ICON
mixed group/individual coach 129 MIXED_GROUP_ICON
WiFi area 139 WIFI_ICON
air condition 140 AC_ICON
USB ports for charging 141 USB_PORT_ICON
business class 142 BUSINESS_ICON
panorama coach 143 PANORAMA_ICON
luggage coach 173 LUGGAGE_ICON
sleeping car 174 SLEEPING_CAR_ICON
car-carrier 175 CAR_CARRIER_ICON
multi function - MULTI_FUNCTION_ICON
wheelchair - WHEELCHAIR_ICON
pram - PRAM_ICON
playground - PLAYGROUND_ICON
easy access - EASY_ACCESS_ICON
toilet - TOILET_ICON
toilet supporting wheelchairs - TOILET_PRM_ICON
ski - SKI_ICON
